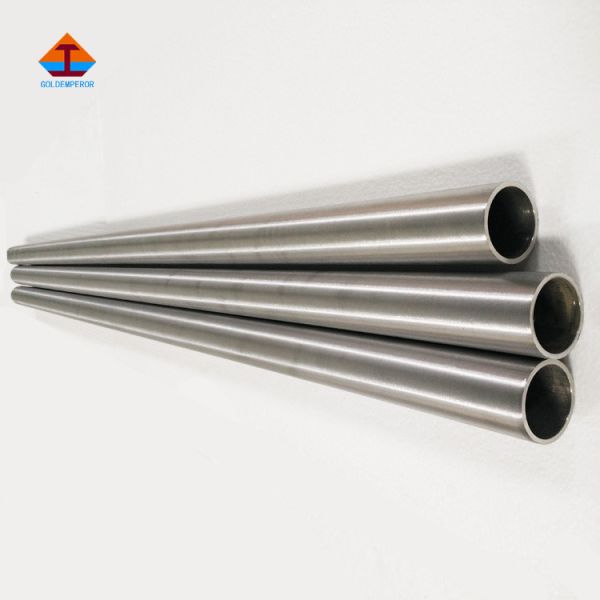

Titanium Tube Grade 5 Titanium Plate Forged Titanium Alloy Parts

Product Categories
Henan Gold Emperor Industrial Technology Co., LTD
Contact Now

Titanium Tube Grade 5 Titanium Plate Forged Titanium Alloy Parts

Brand Name : gold emperor

Model Number : JHT002

Certification : IATF 16949:2016

Place of Origin : china

MOQ : 1000pcs

Price : USD30- USD50/KG

Payment Terms : T/T

Supply Ability : 1000000PCS/year

Delivery Time : 40 days

Packaging Details : 0.5 square plywood box packing

Material : titanium alloy

Oem : yes

tolerance : +-0.01

Contact Now

China titanium alloy material supplier processing sales titanium tube titanium plate forged titanium alloy parts

The usage of various Titanium bars detailed description

(1). grade 1 can be used in the drawing parts for its good elongation and excellent corrosion-resistance.

(2). grade 2 is used most widely in the commercially pure titanium

(3). grade 3 is almost used in pressure,vessel.

(4). grade 4 can be used in some fittings parts and fastening pieces, but for complex shape need 300 degree celsius to form.

(5). Alloy grade 5(Ti-6Al-4V) widely used in the titanium alloys because of its comprehensive mechanical and chemical properties.

(6). Alloy grade 7 add little palladium in cp titanium and it has the most excellent corrosion-resistance,of course it costs higher.

(7). Alloy grade 9(Ti-3Al-2.5V) is the most widely used in the golf clubs and bicycle girders.

(8). Alloy grade 23, ELI(extra low interstitial),can be used in the medical appliance.
Chemical component of pure titanium bar

Element Composition,%
Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr9 Gr11 Gr12
N max 0.03 0.03 0.05 0.05 0.05 0.03 0.03 0.03 0.03
C max 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08
H max 0.05 0.015 0.015 0.015 0.015 0.015 0.015 0.015 0.015
Fe max 0.2 0.3 0.3 0.5 0.4 0.5 0.25 0.2 0.3
O max 0.18 0.25 0.35 0.4 0.2 0.25 0.15 0.18 0.25
Al 5.5-6.75 2.5-3.5
V 3.5-4.5 2.0-3.0
Pd 0.12-0.25


2.Tensile Requirements

Grade Tensile strength(min)/MPa Yeild strength(min%)/MPa Elongation(min%) Reduction of Area(min%)
Gr5 895 828 10 25
Gr7 345 275 20 30
Gr9 620 438 15 25
Gr12 438 345 18 25

Titanium Pipes titanium alloys used in aircraft manufacturer

Product Name Titanium Pipes titanium alloys used in aircraft manufacturer
Standard ASTM B338/ASME SB338, ASTM B337/ASME SB337, ASTM B861/ASME SB861, ASTM B862/ASME SB862,AMS4911,AMS4928
Material Gr1, Gr2, Gr5, Gr7, Gr9, Gr11, Gr12, etc
Length ≤14000mm
Size(mm) Diameter 3-508
Section shape Round/ Square
Certification ISO9001
Surface Treatment pickling, polished, bright finish etc.
Feature 1.Low Density and High Strength
2.Excellent Corrosion Resistance
3.Good resistance to effect of heat
4.Excellent Bearing to cryogenic property
5.Nonmagnetic and Non-toxic
6.Good thermal properties
7.Low Modulus of Elasticity

Titanium Tube Grade 5 Titanium Plate Forged Titanium Alloy Parts

Titanium Tube Grade 5 Titanium Plate Forged Titanium Alloy PartsTitanium Tube Grade 5 Titanium Plate Forged Titanium Alloy Parts
